H3c Lscm2cgt24tssc8 Optical Interface Switching Routing Engine Module

MOQ : 1

Brand Name : H3C

Model Number : LSCM2CGT24TSSC8

Payment Terms : T/T

Supply Ability : 10000pcs/month

Delivery Time : 7-10days

Packaging Details : carton

Model NO. : LSCM2CGT24TSSC8

Transmission Rate : 10/100/1000Mbps

Ports : 24

Flash : 4GB

Transport Package : Carton

Specification : 40mm× 399mm× 355mm

Trademark : H3C

Origin : China

Contact Now

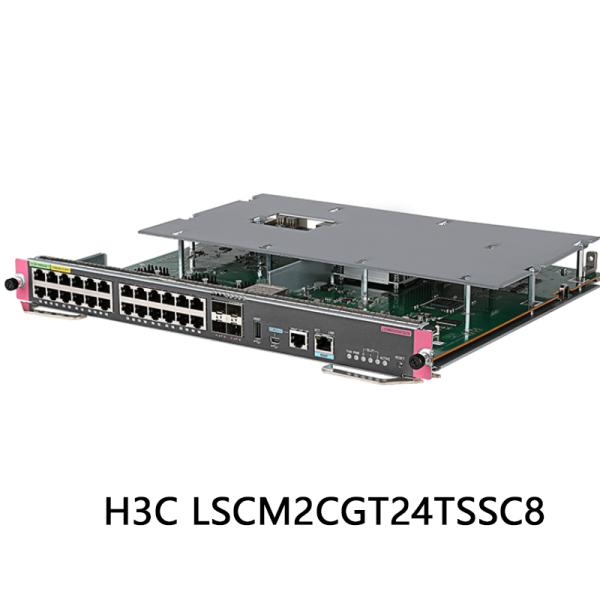

24-port Gigabit electrical interface + 4-port 2 Gigabit SFP + optical interface Switching Routing Engine module.
A silkscreened LSCM2CGT24TSSC8 is displayed in the upper right corner of the front panel to identify the board.
Illustrate:LSCM2CGT24TSSC8
· The USB interface does not support the use of USB extension cables.LSCM2CGT24TSSC8
· You can refer to the H3C S7000X Series Switches Adaptation Table Between Boards and Optical Modules to obtain information about the optical modules or cables that are applicable to the boards.LSCM2CGT24TSSC8
· You can refer to the software release manual to obtain the host software version information for the board.
Related Information
For details about how to install a board, see Installation Guide for Host Packages.LSCM2CGT24TSSC8
For details about how to upgrade the host software version, see the release notes.LSCM2CGT24TSSC8
H3c Lscm2cgt24tssc8 Optical Interface Switching Routing Engine Module
attribute
specification
Flash
4GB
BootROM
4MB*2
NVRAM
1MB
SDRAM
2GB
Veneer size (H×W×D).
40mm×399mm×355mm
Power consumption of the board
23W~41W
The type and number of interfaces
·1consoleport

·1xUSB Consoleport

·1network management port

·1mainUSBport

·4SFP+interfaces

·24RJ-45electrical connectors
Interface transmission rate
·Consoleport:9600bps~115200bps(default9600bps)

·USB Consoleinterface:115200 bit/s≤,9600 bit/sby default

·Network management port:10/100/1000Mbps, half-duplex/full-duplex

·SFP+interface:10 Gbit/s,1 Gbit/s,100 Mbit/s

·RJ-45electrical interface:10/100/1000Mbps
Cable and maximum transmission distance are available
·Consoleport: asynchronousEIA/TIA-232cable, transmission distance≤15m

·USB Consoleinterface:USB-ABcable, transmission distance≤10m

·Network management port:Category5ormore twisted pair cable, transmission distance5m

·SFP+interface:SFP+optical transceiver andSFPoptical transceiver

·10M/100M/1000MadaptiveRJ-45electrical interface:Category5ormore twisted pair cable, transmission distance5m
The host type that the board is compatible with
S7003X
Product Description
H3c Lscm2cgt24tssc8 Optical Interface Switching Routing Engine Module
